The gyroscope module of the pitch control system adopts a high-precision 9-axis gyroscope to measure the hub rotation speed and azimuth angle, and outputs measurement signals through RS485 communication and analog signals. It also has functions such as relay alarm output for excessive rotation speed.

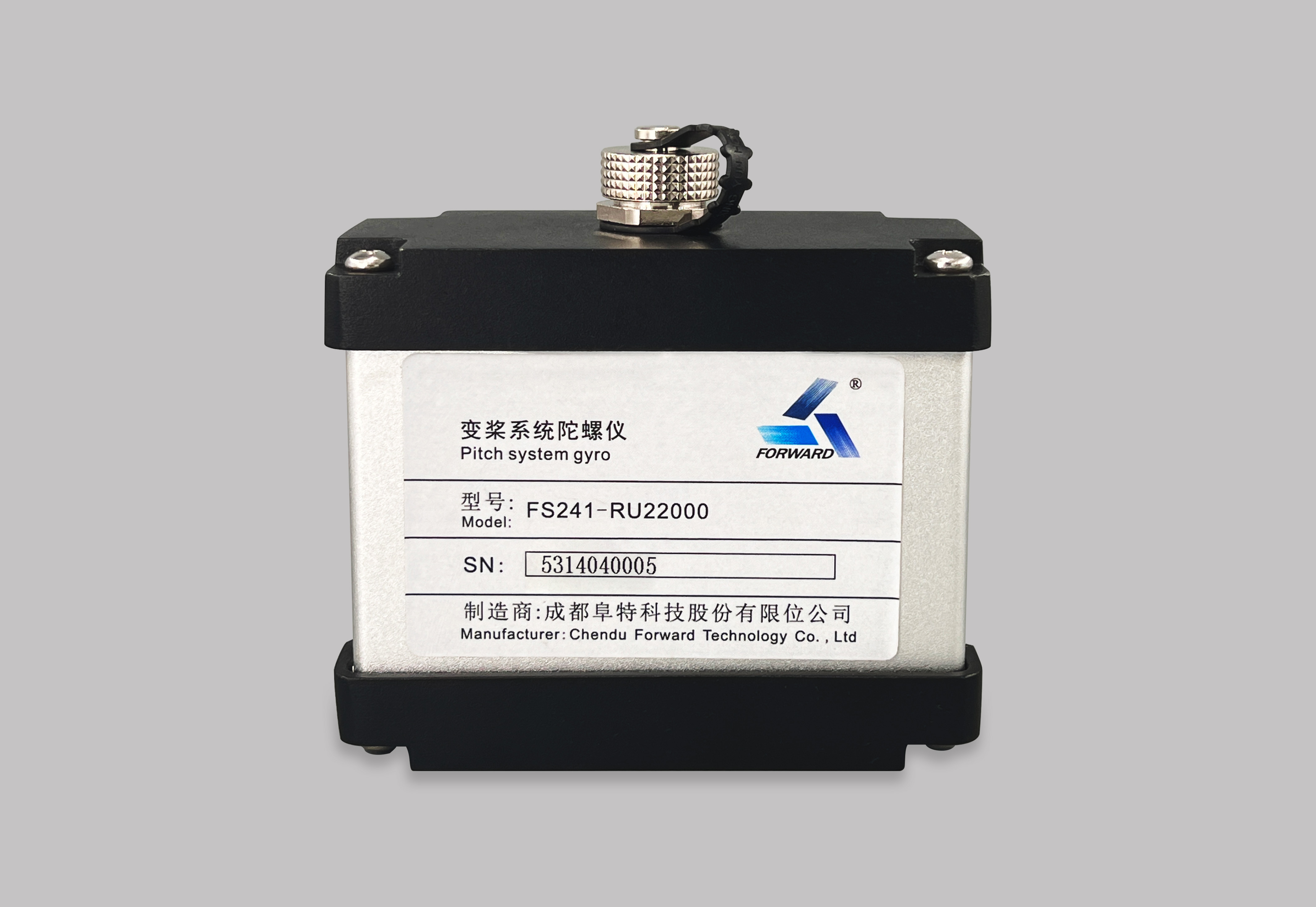

FS241 Rotor Gyroscope

Project

Supply Voltage
Power Consumption
Output Interface of Rotation Speed
Measurement Range
Resolution Ratio of Speed
Accuracy Of Speed
Output Interface of Azimuth Angle
Resolution Ratio of Azimuth Angle
Accuracy of Static Azimuth Angle
Accuracy of Dynamic Azimuth Angle
Non-linear Property
Weight
Connector Type
Protection Class

Data

10.0 ~ 36.0Vdc
3.5W Max
0 ~ 10Vdc (0 ~ 30rpm)
0 ~ 30rpm
0.003rpm
±0.01rpm
0 ~ 10Vdc (0 ~ 360°)
0.0055°
0.2°
0.5°
0.1%
900g
16G-12
IP67

▶ With high-precision nine-axis gyroscope module.
▶ Communicate with the host computer though CAN or RS485.
▶ With two analog signal output interfaces: 0-10V and/ or 0-5V.
▶ With two hardware alarm interfaces.
▶ With the function such as :adjusting alarm thresholds and baud rates through the upper computer.
▶ Have strong electromagnetic anti-interference capabilities due to multi-level EMC structure.
