Wind turbine generators face risks such as high-frequency common-mode voltage interference and grounding carbon brush wear, which potentially cause failures compromising mechanical structural stability of the generator.

FS223 shaft voltage and current module, providing real-time monitoring and acquisition of the generator's shaft voltage and current. Module will output a hardware alarm signal and simultaneously records data during the abnormal state, facilitating fault analysis and localization.

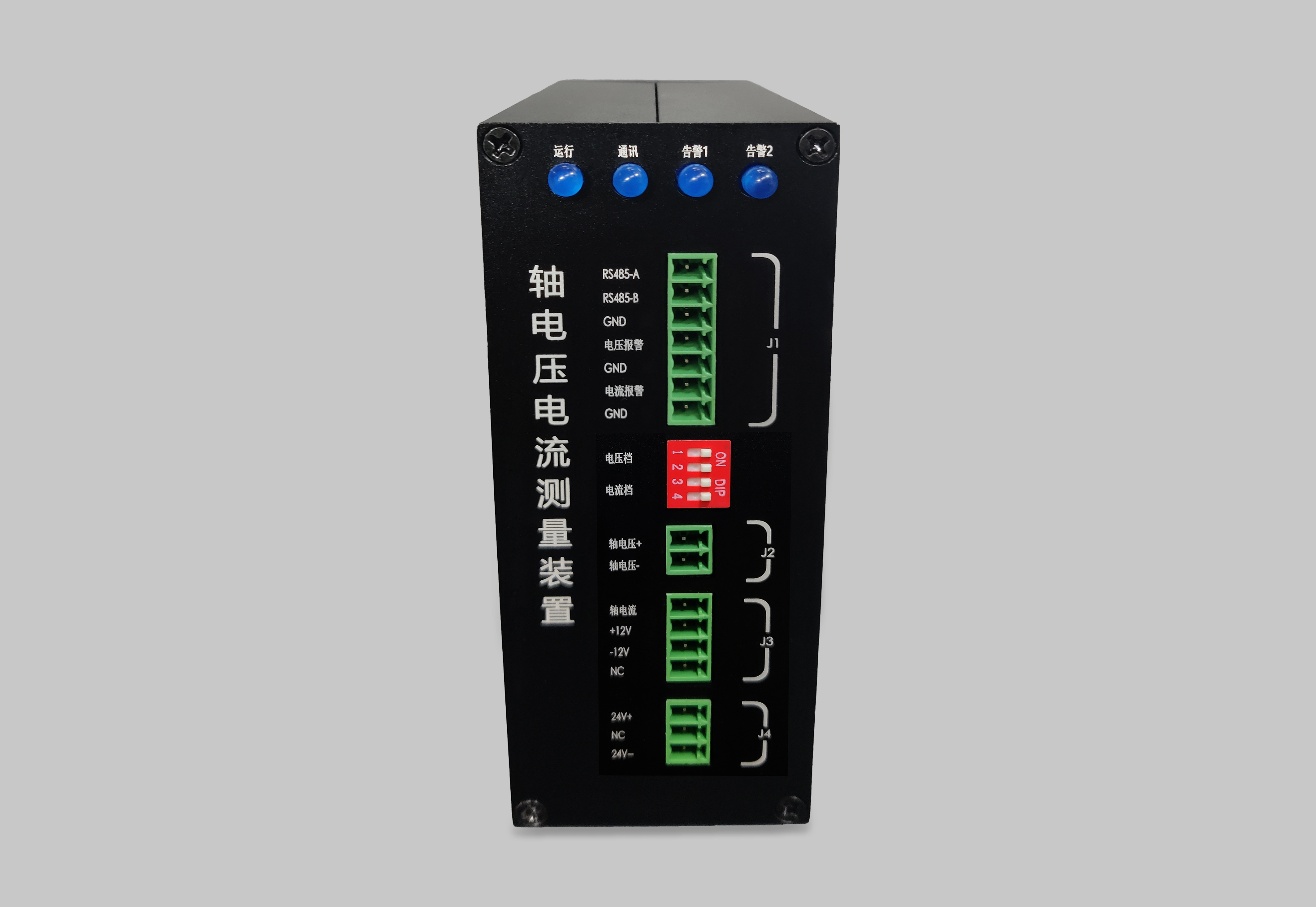

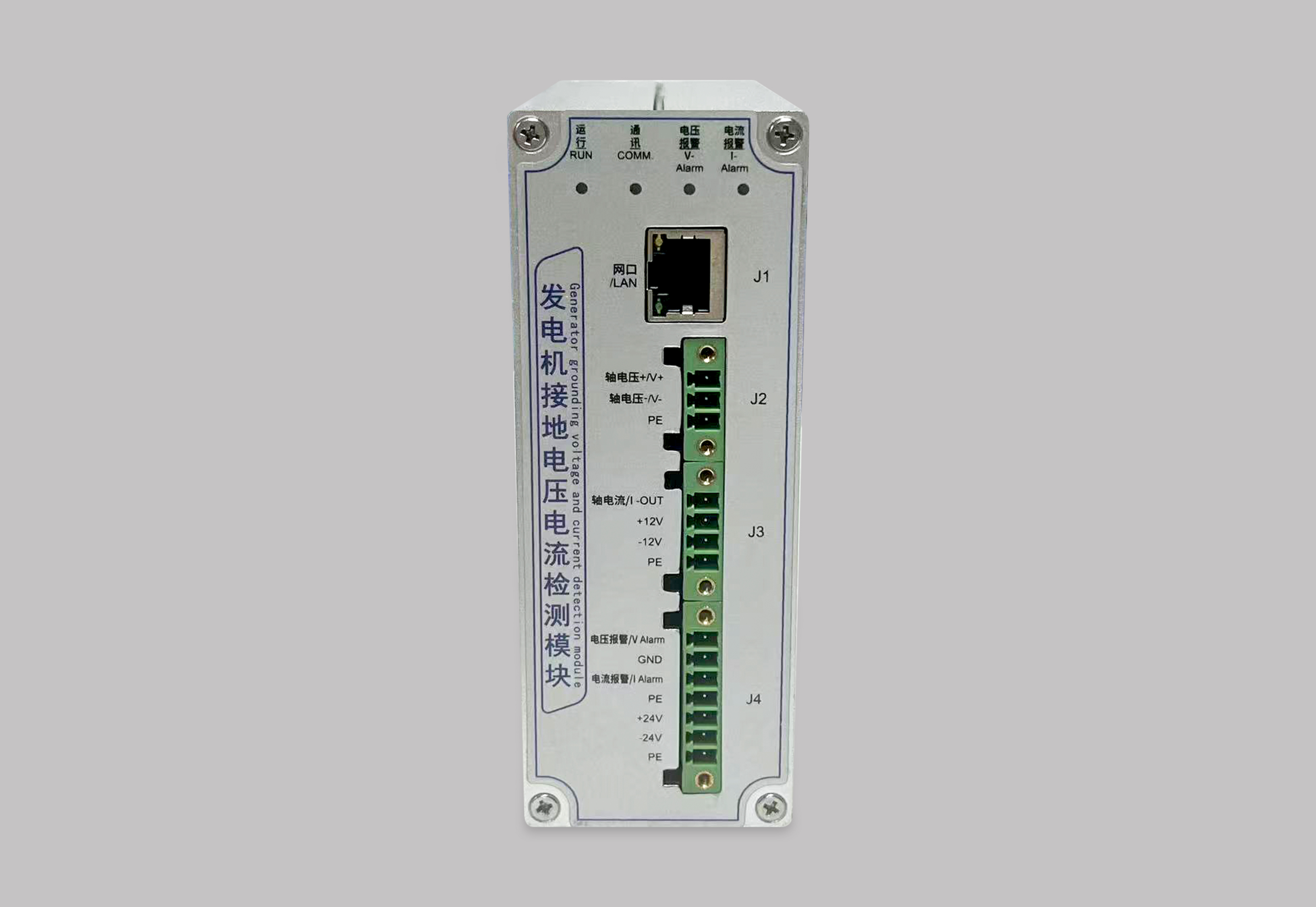

FS223 Generator Shaft Voltage and Current Monitoring Module

Specifications

Supply Voltage
Rated Power
Voltage Measurement Range
Current Measurement Range
Measurement Error
Sampling Frequency
Relay Normal Level
Relay Alarm Level
Voltage Alarm Threshold
Current Alarm Threshold
Communication Mode

Protection Level
Working Temperature
Size
Weight

Parameters

24V±20% DC
4.5W Max
±50V
±50A
≤1%FS
≥20kHz
≥18Vdc
≤3Vdc
±0.5V
±0.5A
RS485(19200bps, 1, 8, N)
IP20
-40°C to +70°C
125mm × 122mm × 51mm
0.7kg

▶  Utilizes a 16-bit high-precision ADC acquisition chip for synchronous voltage and current sampling.
▶  Equipped with both hardware and software watchdogs to provide dual protection for the normal operation of modules.
▶  Features two-channel hardware interfaces, with an internal relay that can output hardware alarm signals.
▶  Includes data storage functionality for peak-to-peak values and RMS values.
▶  A customized host computer allows for flexible setting of alarm thresholds, data storage duration, and other parameters.
▶  Provides a ±12V power output interface to supply power to the current sensor.
▶  Equipped with reverse polarity protection, enhanced EMC designs for improving ability of anti-interference
