The low-frequency accelerometer adopts a high-precision MEMS accelerometer and a dual-redundancy design scheme to ensure high system reliability.

The acceleration signal is filtered and output in real time via an analog signal. When the signal exceeds the threshold, a passive dry contact alarm signal is triggered, enabling vibration monitoring and safety protection for key components of wind turbine units, such as the transmission chain and tower tube.

FS202-U-0202A-AJ & FS202-I-0202A-AJ

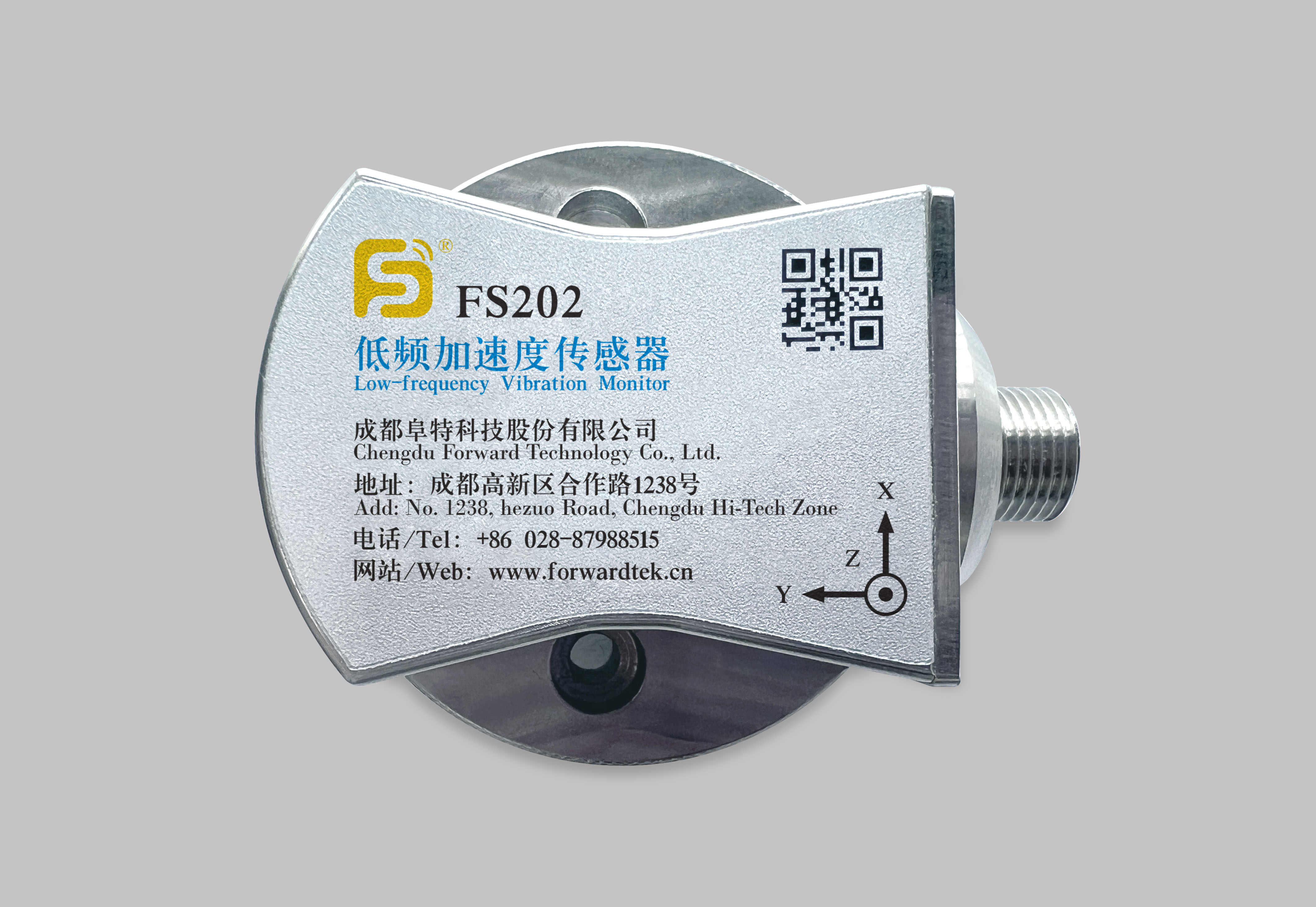

High-Precision Low-frequency Dual-axis Vibration Monitor

Specifications

Power Supply

Acceleration Resolution Measurement Range

Analog Output Interface

SSD Relay

Relay Output

Degree of Protection

Working Temperature

Module Size

Weight

Parameters

18Vdc ~ 36Vdc, Max. 2.5W

0.02mg

±0.500g

0 ~ 10V / 4 ~ 20mA

0.5A 250Vac / 30Vdc

1 channel

IP67

-40°C to +60°C

64.7 × 54 × 43mm

≤500g

▶ High-precision 3-axis MEMS accelerometer with a resolution of 0.02mg.

▶ Dual-redundancy design for key components including MCU, MEMS, and SSD relay.

▶ Enhanced EMC (Electromagnetic Compatibility) protection design.

▶ Dual protection with software and hardware watchdogs.

▶ Fault snapshot data function for rapid fault localization.
