FS202 low-frequency dual-axis  vibration monitor continuously and reliably measures and analyzes the low-frequency vibration of wind turbines, and outputs a hardware alarm signal when the vibration amplitude exceeds the set limit.

FS202 low-frequency dual-axis vibration monitor has vibration amplitude monitoring, inclination monitoring, watchdog and self-test functions.

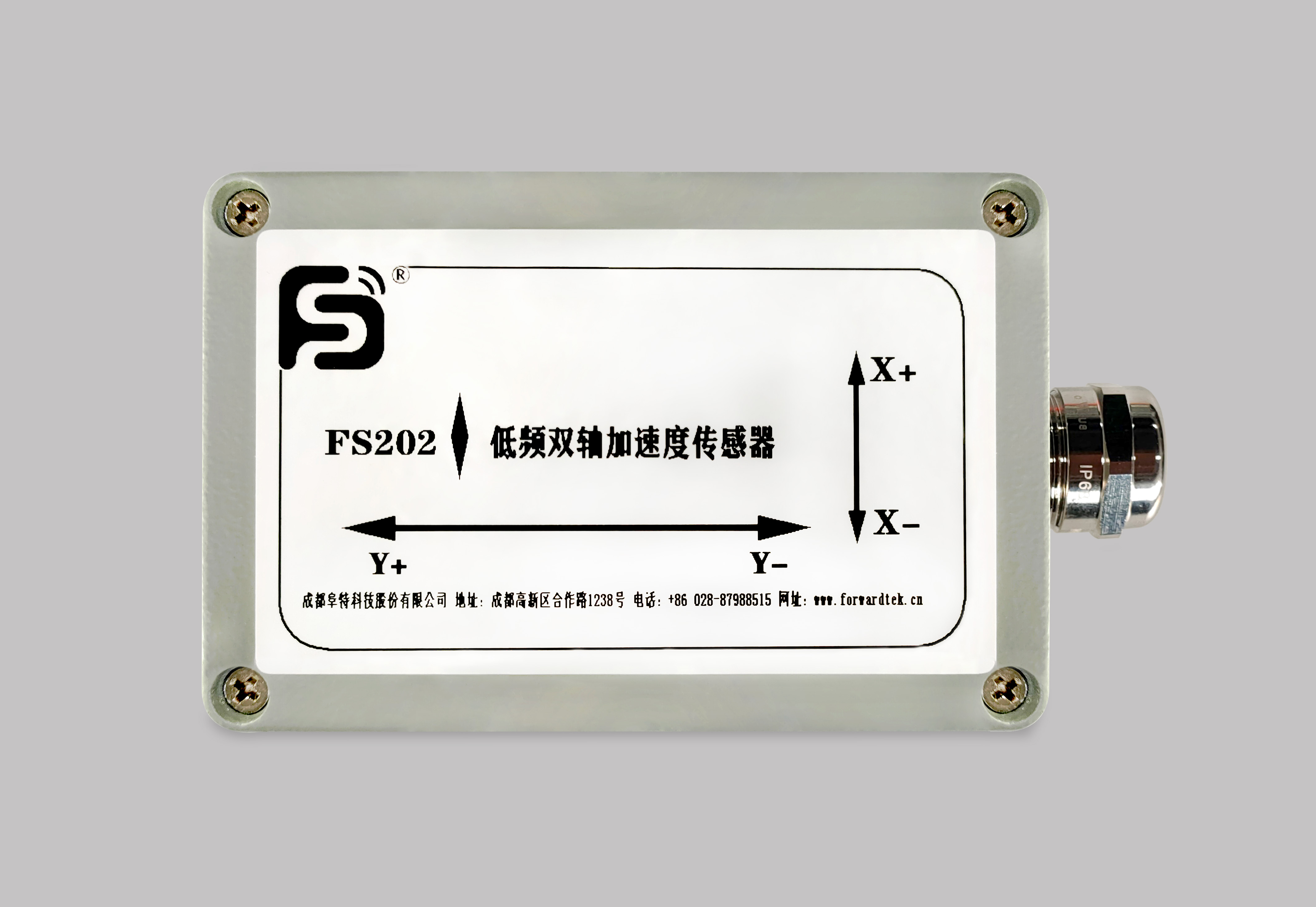

FS202 Low-Frequency Dual-Axis Vibration Monitor

Specifications

Rated Voltage
Rated Power
Acceleration Measurement Range
Signal Output Range
Acceleration Resolution
Frequency Range
Relay Contact Load
*  Alarm Threshold
*  Alarm Hysteresis Ratio
*  Alarm Release Delay
*  Alarm Trigger Direction
Degree of Protection
Operating Temperature
Module Size
Weight

Parameters

24V±15% DC
3.5W Max
±0.500g
0 ~ 10V
≤0.004g
0 ~ 25Hz
1A 250Vac/30Vdc
±0.250g
80%
2s
X direction, Y direction
IP66
-40°C to +70°C
150 × 100 × 81mm
0.8kg

Note:  " * " Indicates the default configuration, which can be customized according to customer needs or changed by themselves, please refer to the FS202 software Operation Guide for details.

▶  Built-in high-precision accelerometer can measure both X and Y vibration or inclination in both X and Y directions.
▶  It has a hardware alarm signal output interface, the internal relay can output the hardware alarm signal, and the alarm threshold and other parameters can be set flexibly.
▶  It has the function of anti-reverse connection, enhances the EMC design, and has strong anti-interference ability.
▶  100% factory calibration, no on-site calibration required.
▶  Cast aluminum shell, small size, easy installation, sturdy and durable, dustproof and waterproof.
▶  There are no moving parts, no mechanical wear and tear, and long service life.
