Fl series industrial PC is developed specially for wind turbine systems with HMI technology. As a HMl solution, it is used primarily for harsh enviroments and performance requirements for wind turbine systems demand HMl and automatic control functions, e.x. high interference resistance to interference and vibration, wide temperature tolerance.

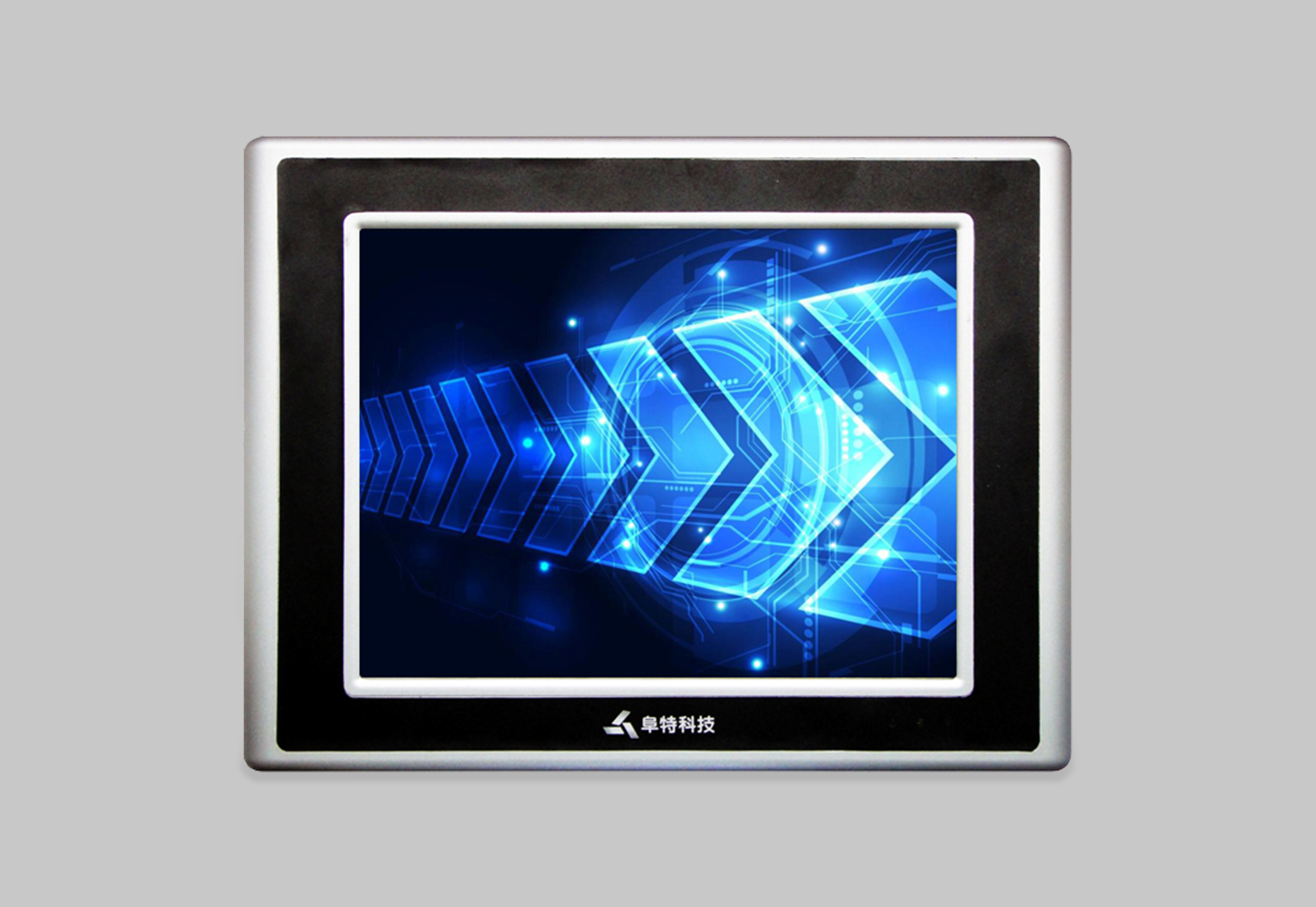

FI Series Industrial PC

FI104C（10-inches）

FI70C（7-inches）

Specifications
Input Power
Rated Power
CPU

GPU
Memory
Storage Hard Disk
Network
Audio
Display Screen

Touch Screen
I/O Interface

Vibration

Impact
Size

Weight

Working Temperature
Storage Temperature
RH
EMC Interference Resistance
Protection Class
Software Compatibility

FI104C (10-inches)  &  FI70C (7-inches)
20 ~ 28Vdc
35W
Intel Atom X86 System
Intel Atom Dual Core Processor 1.86GHz, L2 Cache 1M
Intel GMA3600 Chipset, video memory: 650M
DDR3, 1333MHz, 2GB, SDRAM
SSD 16GB
Dual IntelRTL8111E Gigabit Ethernet
Realtek ALC662
FI104C：SVGA TFT (800 pox × 600 pox)

FI70C：SVGA TFT (800 pox × 480 pox)
Precision resistive industrial touch panel
DCIN power supply input interface
2 x RJ45 network interface
1 x RS485 serial interface
DB15VGA display interface
3 x USB2.0 interface
HDMI
10 Hz to 55Hz, peak to peak values: 7mm
50Hz to 500Hz, maximum acceleration: 1.5g
10g/peak (11ms sec)
FI104C：304mm × 234mm × 67mm

FI70C：212mm × 157mm × 63.2mm
FI104C：2.7Kg

FI70C：1.6Kg
-30°C to +70°C
-30°C to +70°C
< 5% to 85% RH (condensate free)
Grade3 class A
IP65
OS such as Windows XP, Windows XP Embedded, Windows 7 and Linux

▶  High-performance ultra-low power consumption CPU
▶  Multiple powerful communications interfaces
▶  HD LCD
▶  Excellent Construction and Design
▶  Wide Tolerance of Ambient Conditions
▶  Super Software Compatibility
